LSST SIM


Description

The LSST SIM tables contain a large simulation, based on the TRILEGAL code, of the stars to be observed by the Vera C. Rubin Observatory Legacy Survey of Space and Time (LSST). TRILEGAL uses databases of stellar evolutionary tracks, synthetic spectra, and pulsation models, added to simple prescriptions for the stellar density and star formation histories of the main structures of the Galaxy, to generate mock stellar samples through a population synthesis approach.

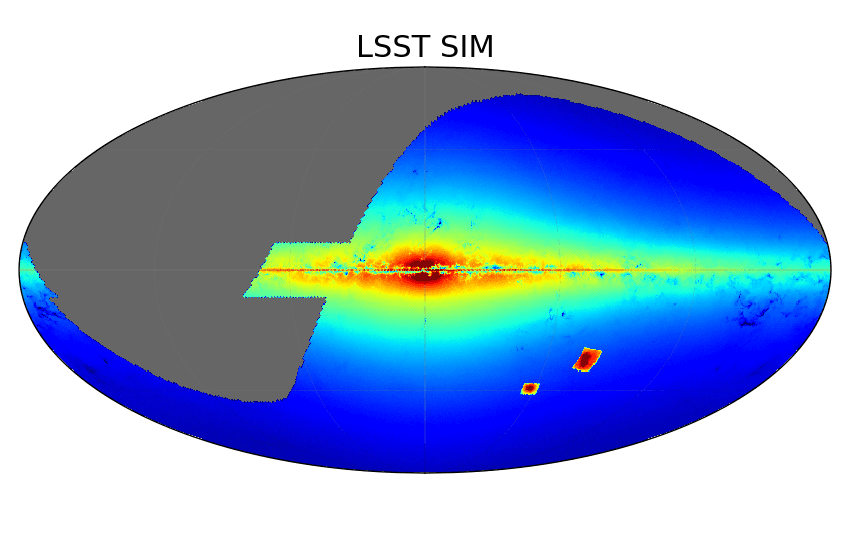

LSST SIM provides tables containing a complete simulation for single stars in the Milky Way and Magellanic Clouds down to a depth of r=27.5 mag, equivalent to the co-added depth from the Wide-Fast-Deep portion of the LSST survey. LSST SIM also provides a table for a subset of the anticipated binary systems, including interacting ones, as derived with the BinaPSE module of TRILEGAL.

Back to Top

Scientific Goals

The goal of LSST SIM is to aid in the preparation and interpretation of analyses of the Rubin LSST survey by providing a simulation of all stars that will be visible in the final stacked LSST images across the LSST footprint.

Back to Top

Data Releases

Second Data Release (LSST SIM DR2)

LSST SIM Data Release 2 (DR2) supersedes Data Release 1 (DR1), which did not include the Magellanic Clouds or information on binary systems. DR1 also contained some spurious artifacts that have been corrected in DR2.

LSST SIM at a Glance
TableAreaBandsDepthRow Count
simdr2∼27,000 deg²ugrizY, Gaia G,Bp,Rp∼27.5 mag11,433,322,690
simdr2_binary∼27,000 deg²ugrizY, Gaia G,Bp,Rp659,455,991

Back to Top

Data Access

The LSST SIM data are accessible by a variety of means:

Data Lab Table Access Protocol (TAP) service

TAP provides a convenient access layer to the LSST SIM catalog database. TAP-aware clients (such as TOPCAT) can point to https://datalab.noirlab.edu/tap, select the lsst_sim database, and see the database tables and descriptions. You can also view the LSST SIM tables and descriptions in the Data Lab table browser.

Data Lab Query Client

The Query Client is available as part of the Data Lab software distribution. The Query Client provides a Python API to Data Lab database services. These services include anonymous and authenticated access through synchronous or asynchronous queries of the catalog made directly to the database. Additional Data Lab services for registered users include personal database storage and storage through the Data Lab VOSpace.

The Query Client can be called from a Jupyter Notebook on the Data Lab Notebook server. Example notebooks are provided to users upon creation of their user account (register here), and are also available to browse on GitHub at https://github.com/astro-datalab/notebooks-latest.

Jupyter Notebook Server

The Data Lab Jupyter Notebook server (authenticated service) contains several examples of how to access and visualize the LSST SIM catalog:

  • Color-magnitude and color-color diagrams of the South Galactic Pole
  • Combining single and binary models: the South Galactic Pole

Back to Top

Acknowledgments

Please refer to the Rubin Observatory citations page on how to cite usage of the LSST SIM data.

Back to Top
