PHAT (Panchromatic Hubble Andromeda Treasury)

DescriptionScientific GoalsData ReleasesThird Data Release (PHAT v3)Second Data Release (PHAT v2)Data ReductionData AccessAcknowledgments


Description

The Panchromatic Hubble Andromeda Treasury is a Hubble Space Telescope Multi-cycle program to map roughly a third of M31's star forming disk, using 6 filters covering from the ultraviolet through the near infrared. With HST's resolution and sensitivity, the disk of M31 is resolved into more than 100 million stars, enabling a wide range of scientific endeavors.

The phat_v3.phot_mod and phat_v2.phot_mod tables have been crossmatched against our default reference datasets within a 1.5 arcsec radius, nearest neighbor only. These tables will appear with x1p5 in their name in our table browser. Example: phat_v3.x1p5__phot_mod__gaia_dr3__gaia_source.

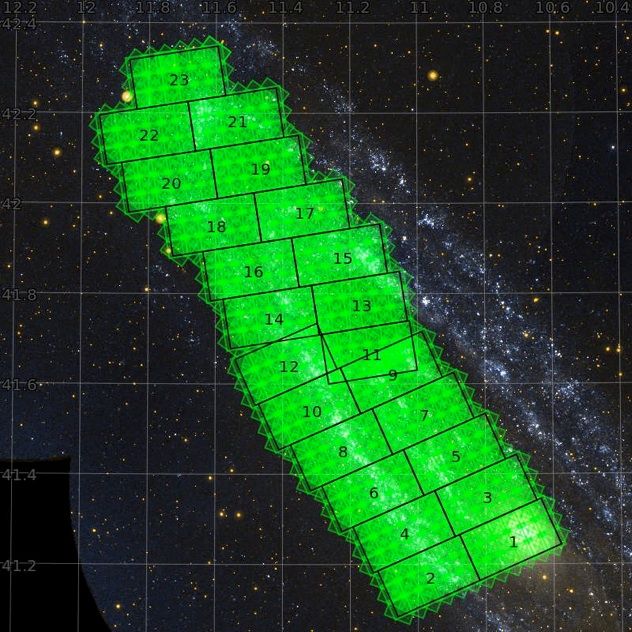

PHAT Brick coverage:


Back to Top

Scientific Goals

  • Star formation histories derived on 50-100 parsec scales
  • Improved stellar evolution models, calibrated at UV through NIR wavelengths
  • Well-defined catalogs of stellar clusters, at all ages
  • Characterization of variations in the stellar mass function from ∼3 to 30 solar masses
  • Measurements of the mass function and age distributions of stellar clusters
  • Maps of extinction from dust, and characterization of the extinction law
  • Calibration of star formation indicators
  • Age dating of supernova remnants
  • Quantitative constraints on the coupling between star formation and the interstellar medium
  • Identification and characterization of variable stars
  • Kinematic decompositions of structural components
  • Cross-identification of multi-wavelength sources and emission line objects

Back to Top

Data Releases

All PHAT data products are available as files from the MAST Archive. The Data Lab service provided here is database access to the photometric catalog, including the combined photometry for phat_v2 and phat_v3 and the single epoch measurements for phat_v2.

Third Data Release (PHAT v3)

Documentation for PHAT_v3 can be found in Williams, B.F. et al. 2023.

PHAT_v3 Summary
Area covered0.5 deg²
BandsJ0275W, J0336W (WFC3/UVIS), J0475W, J0814W (ACS/WFC), J0110W, J0160W (WFC3/IR)
Number of bricks23
Number of objects~137,000,000
PHAT_v3 Tables
phot_modCombined average photometry

Back to Top

Second Data Release (PHAT v2)

Documentation for PHAT_v2 can be found in Williams, B.F. et al. 2014.

PHAT_v2 Summary
Area covered0.5 deg²
BandsF275W, F336W (WFC3/UVIS), F475W, F814W (ACS/WFC), F110W, F160W (WFC3/IR)
Depth (5σ, F275W, F336W, F475W, F814W, F110W, F160W)25.1, 24.8, 27.9, 27.1, 25.0, and 24.0 mag
Spatial resolution (F275W, F336W, F475W, F814W, F110W, F160W)∼0.08, 0.08, 0.1, 0.1, 0.25, and 0.25 arcsec
Number of bricks23
Number of objects~117,000,000
Number of measurements~7,500,000,000
Photometric precision~1%
Astrometric accuracy~5 mas
PHAT_v2 Tables
phot_measIndividual photometric measurements, one row per measurement
phot_modCombined average photometry

Back to Top

Data Reduction

The PHAT survey, the data reduction procedure, and photometric pipeline are described in the following papers:

  • Dalcanton, J.J. et al. 2012, ApJS, 200, 18
  • Williams, B.F. et al. 2014, ApJS, 215, 9

Back to Top

Data Access

The PHAT data are accessible by a variety of means:

Data Lab Table Access Protocol (TAP) service

TAP provides a convenient access layer to the PHAT catalog database. TAP-aware clients (such as TOPCAT) can point to https://datalab.noirlab.edu/tap, select the phat_v3 or phat_v2 database, and see the database tables and descriptions. You can also view the PHAT tables and descriptions in the Data Lab table browser.

Data Lab Query Client

The Query Client is available as part of the Data Lab software distribution. The Query Client provides a Python API to Data Lab database services. These services include anonymous and authenticated access through synchronous or asynchronous queries of the catalog made directly to the database. Additional Data Lab services for registered users include personal database storage and storage through the Data Lab VOSpace.

The Query Client can be called from a Jupyter Notebook on the Data Lab Notebook server. Example notebooks are provided to users upon creation of their user account (register here), and are also available to browse on GitHub at https://github.com/astro-datalab/notebooks-latest.

Jupyter Notebook Server

The Data Lab Jupyter Notebook server (authenticated service) contains examples of how to access and visualize the PHAT catalog:

  • Fun with PHAT!
  • Exploring Resolved Stellar Populations in M31 with PHAT

FTP Access

All of the PHAT catalog files, images, and products of the photometric pipeline are available as files on the MAST site.

Back to Top

Acknowledgments

Based on observations made with the NASA/ESA Hubble Space Telescope, obtained [from the Data Archive] at the Space Telescope Science Institute, which is operated by the Association of Universities for Research in Astronomy, Inc., under NASA contract NAS 5-26555. These observations are associated with the Panchromatic Hubble Andromeda Treasury Multi-cycle Program. Database access and other data services were provided by the Astro Data Lab. NOIRLab is operated by the Association of Universities for Research in Astronomy (AURA) under a cooperative agreement with the National Science Foundation.
